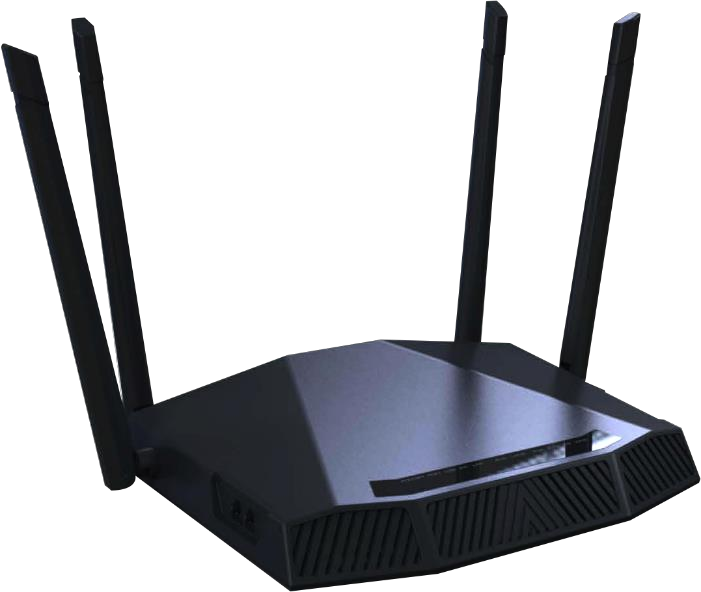

ATW-1122GVI (Wi-Fi7 BE3600 GPON HGU)

Main Features

• Introducing BE3600 Wi-Fi 7
• Blazing Fast Wireless Speed 688 + 2882Mbps
• MLO Support
• Simultaneous Dual Band Wi-Fi—2.4 & 5 GHz
• 5 GHz channel bandwidth 20/40/80/160 MHz
• Wi-Fi transmitters/receivers (Tx/Rx) – 2×2 (2.4GHz) + 2×2 (5GHz). External Wi-Fi Antennas
• Sensitivity: -90dBm
• Wi-Fi Boost with high-power radio amplifiers
• Easy Mesh

Package Contents

• BE3600 GPON HGU
• Fiber Cord
• Quick start guide
• Power adapter (12V,1.5A)

Physical Specifications

• 1 x SC / APC (B+) GPON WAN Port
• 2 x 10/100/1000Mbps Gigabit Ethernet LAN port
• Power on/off Button
• Reset Button
• WPS Button
• Wi-Fi On/Off Button
• DC Jack
• Dimensions: 185 x 150 x 35 mm

Standards

• IEEE® 802.11 b/g/n/ax/be 2.4GHz
• IEEE® 802.11 a/an /ac/ax/be 5GHz
• IEEE 1905.1
• ITU-T G.984
• ITU-T G.988 (OMCI)

Protocols

• PPPoE, IPOE, IPv4/6
• DNS
• DHCP Server
• NAPT
• IGMP
• Dynamic DNS
• TCP/UDP/Port Filtering
• WPA/WPA2/WPA3 Security

Technical Specifications

• Memory: 256MB flash 512MB RAM
• Main Chipset: Hi5662YV700
• Wi-Fi Chipsets: 2G_Hi6W22V110, 5G_Hi6W25V110
• CPU: Dual core, ARM Cortex-A9
• Operation Frequency: 1.15Ghz

Management

• Web Interface Management
• TR-069, TR-181, TR-247
• Remote Configuration/upgrade through Web UI
• OMCI
• Restful API
• Capability to support third party application

Environment

• Operation Temperature: 0℃ ~ 40℃
• Storage Temperature: -20℃ ~ 70℃
• Operating Humidity: 10% ~ 90% (non-condensing)
• Storage Humidity: 5% ~ 95% (non-condensing)
